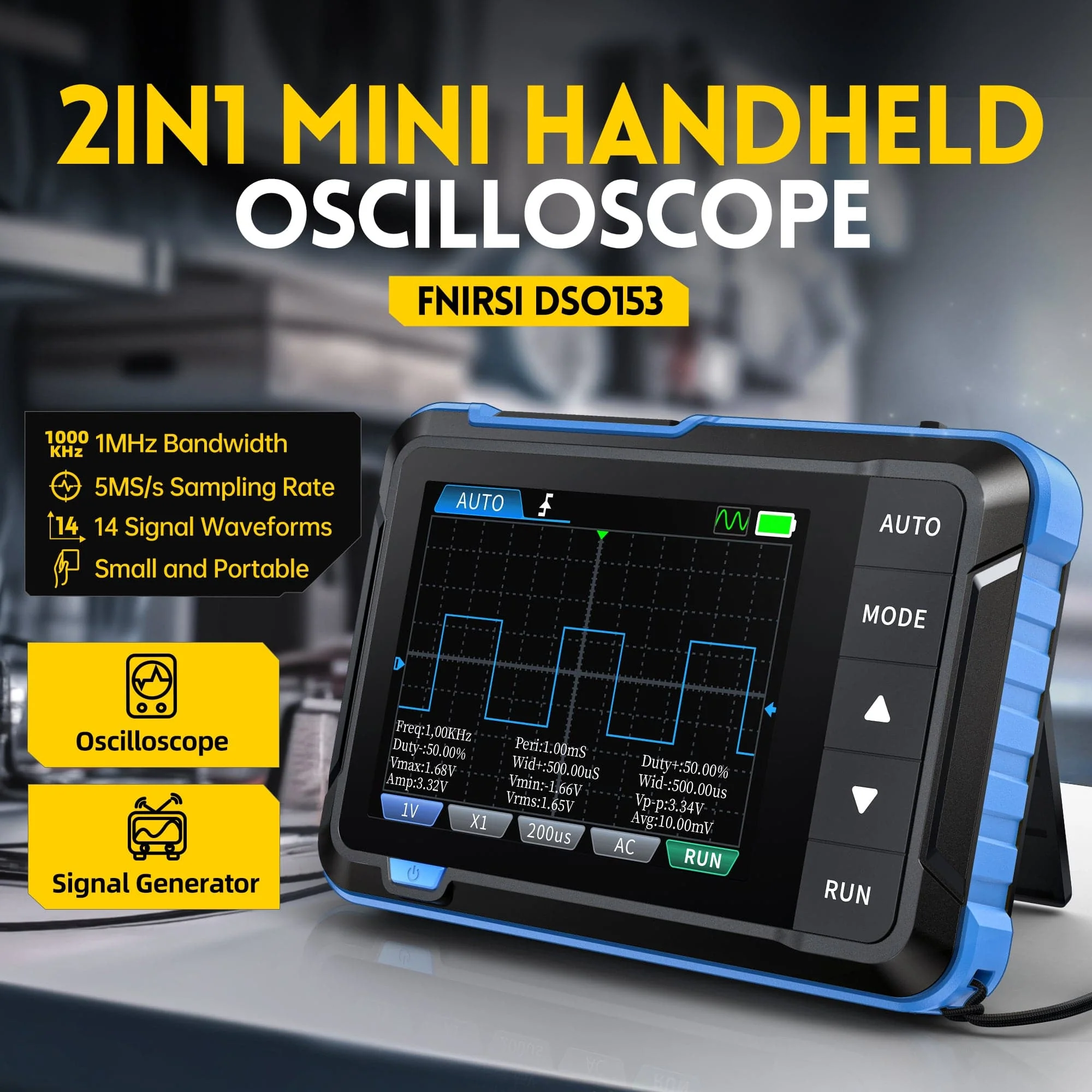

FNIRSI® DSO-153 2-IN-1 Mini 1MHz 5MS/s Digital Oscilloscope Waveform Generator
The DSO153 combines performance and portability, making it an excellent tool for routine maintenance and educational use. It offers a well-rounded feature set suitable for general signal testing. This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure up to ±400V voltage with an efficient one-click AUTO, which can display the measured waveform without complicated adjustments. Additionally, it features a function signal generator capable of outputting 14 types of signals (10KHz). Equipped with a 2.8-inch 320*240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.
Features

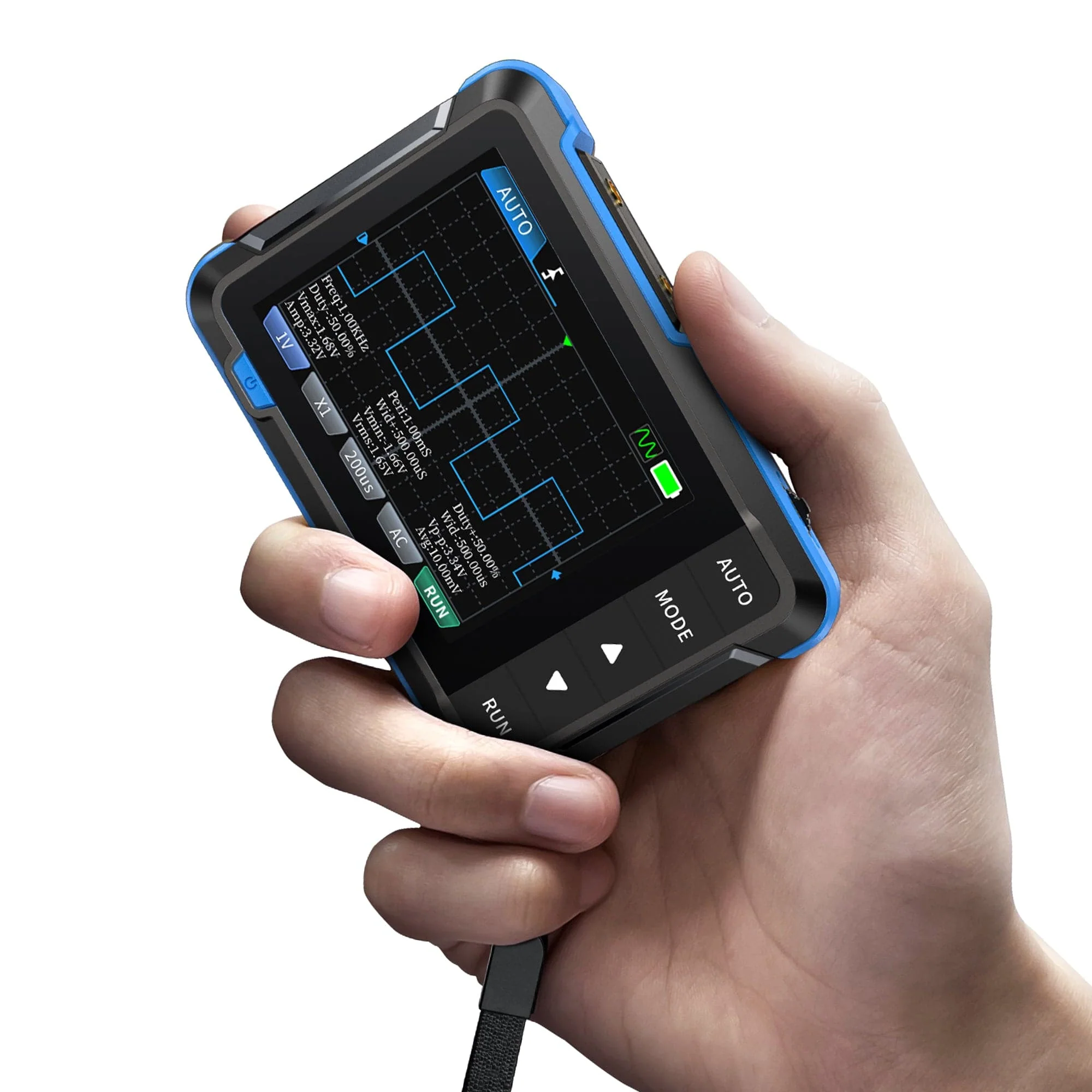

- Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyist
- DSO oscilloscope: 5MS/s, 1MHz bandwidth, ±400V voltage range.
- Signal Generator: 10KHz

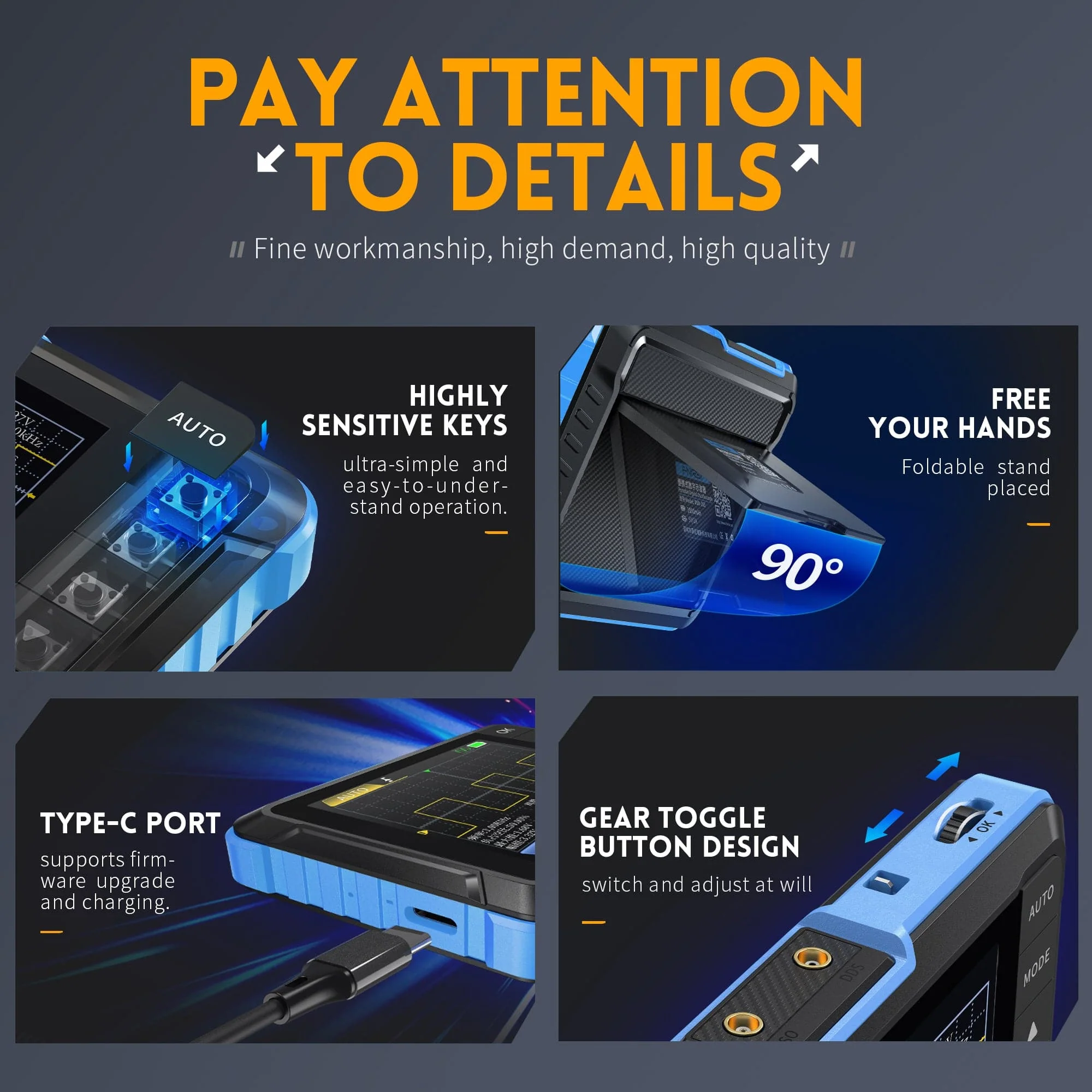

- High-definition 320*240 LCD, Type-C interface.
- Finished assembly, lightweight, perfect for maintenance.
- Versatile trigger functions: single, normal, automatic.
- Signal Type Support: Periodic analog signals and non-periodic digital signals.

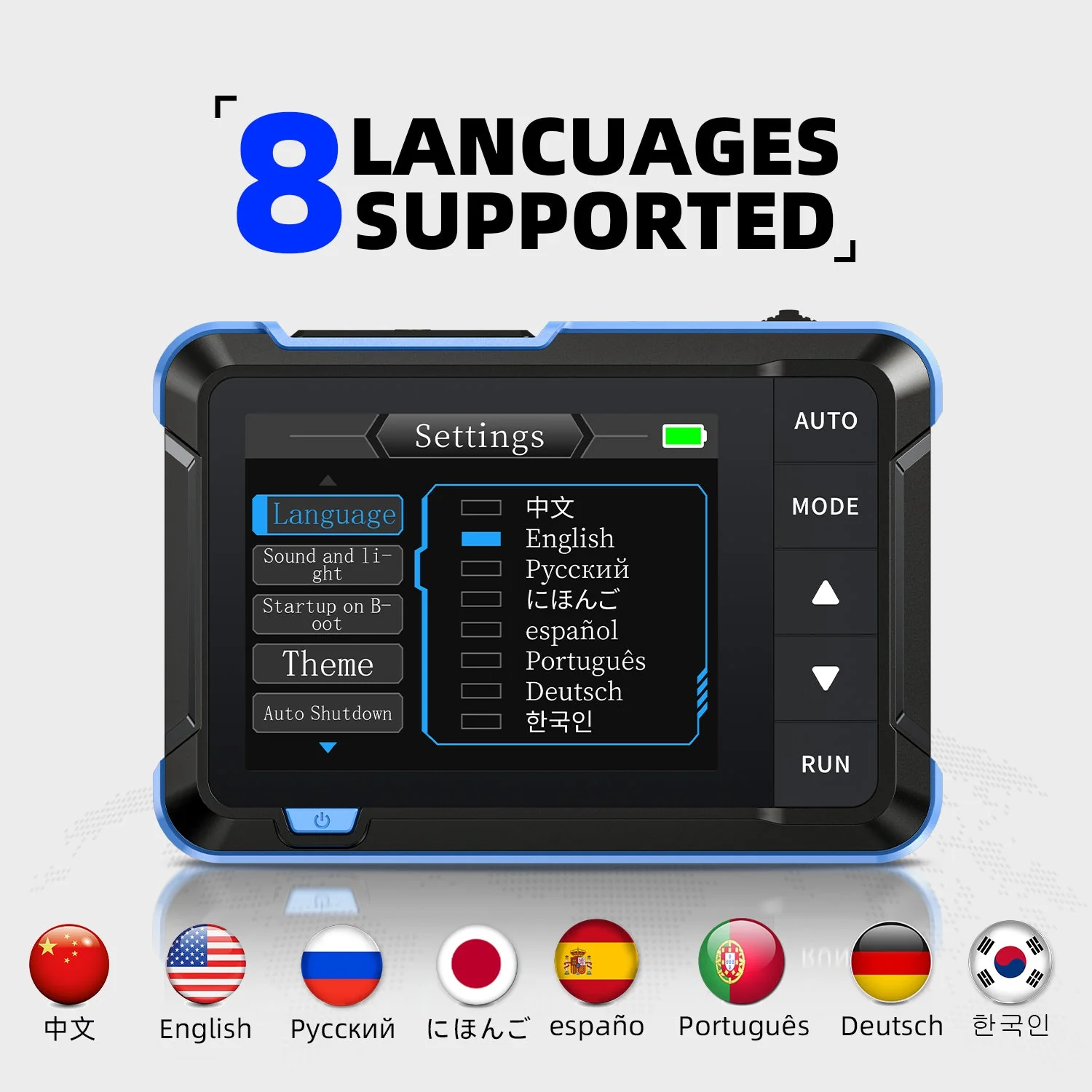

- 8 different languages: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean.
- One-Click AUTO Mode: Effortlessly display waveforms with minimal input.

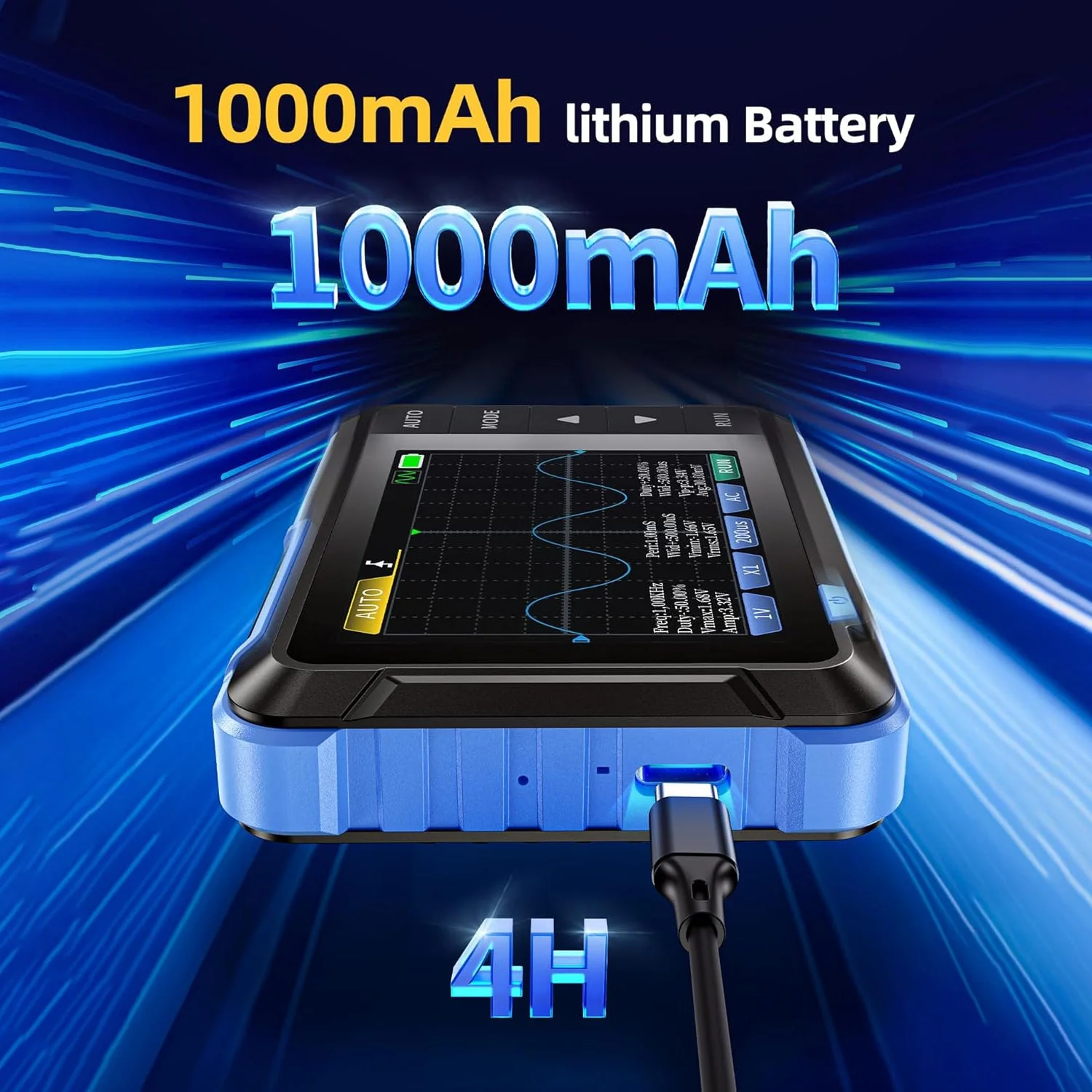

- Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
- Recommended Use: Suitable for routine equipment maintenance and educational signal demonstrations.
* Basic Parameters *
Brand
FNIRSI
Model
DSO-153
Display
2.8 Inches / PPI:320*240
USB Charging
5V/1A
Lithium Battery Capacity
1000mAh
Size
99x68.3x19.5mm
Weight
100g
* Mini Oscilloscope *
Channel
1
Sampling Rate
5MS/s
Bandwidth
1MHz
Vertical Sensitivity
10mV/Div-10V/Div (Progress according to the 1-2-5 way)
Time Base Range
500ns/Div-20s/Div (Progress according to the 1-2-5 way)
Voltage Range
X1:±40V (Vpp:80V)
X10:±400V (Vpp:800V)
X10:±400V (Vpp:800V)
Trigger Mode
Auto / Normal / Single
Trigger Edge
Rising edge / Falling edge
Coupling
AC/DC
* Signal Generator *
Frequency
0-10KHz
Duty Cycle
0-100% (rectangular and sawtooth waves)
Amplitude
0.1-3.3V
Waveforms

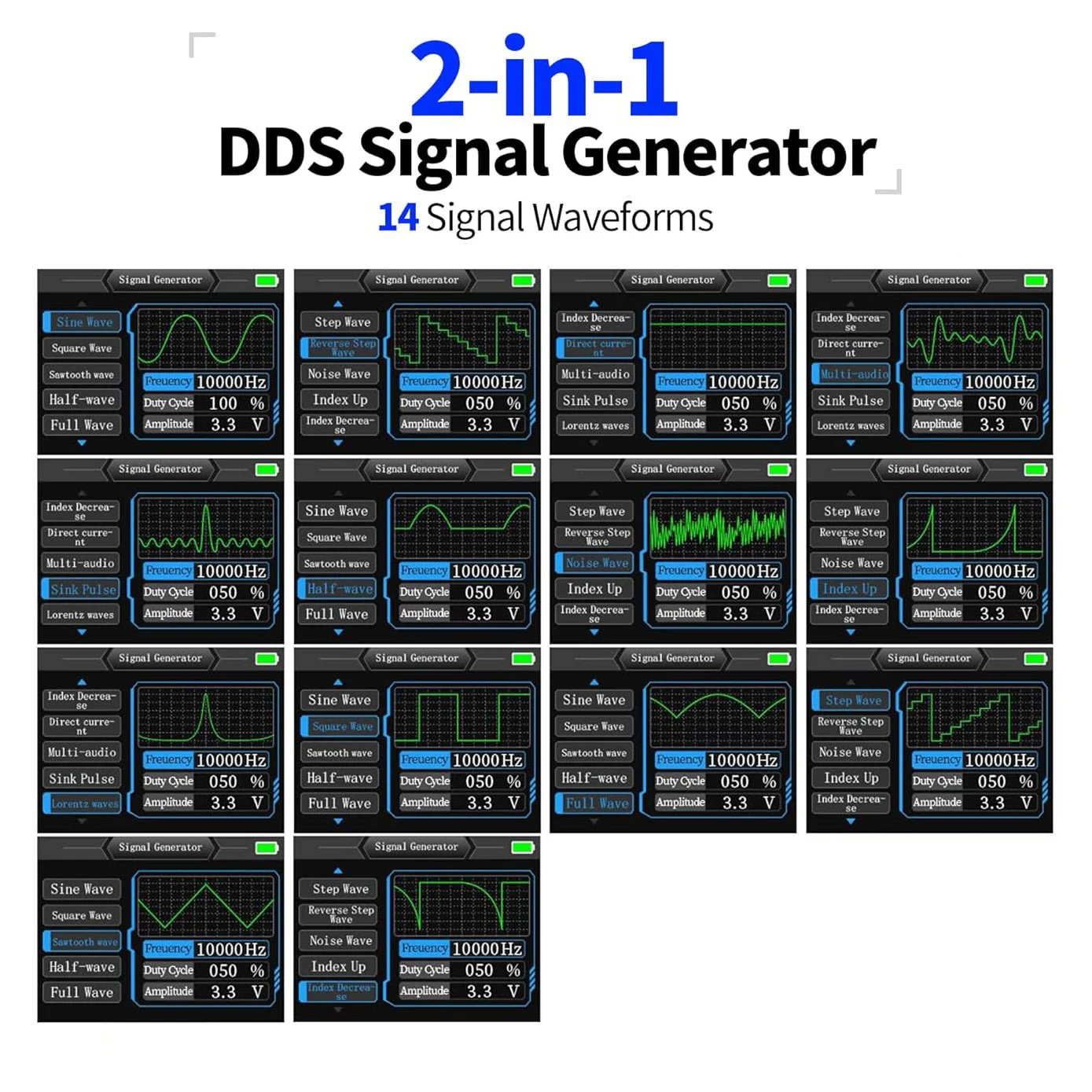

Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, noise wave, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz wave.
◈ The size and weight are both manually measured, with slight errors, please refer to the actual product for accuracy.
